LineAxis

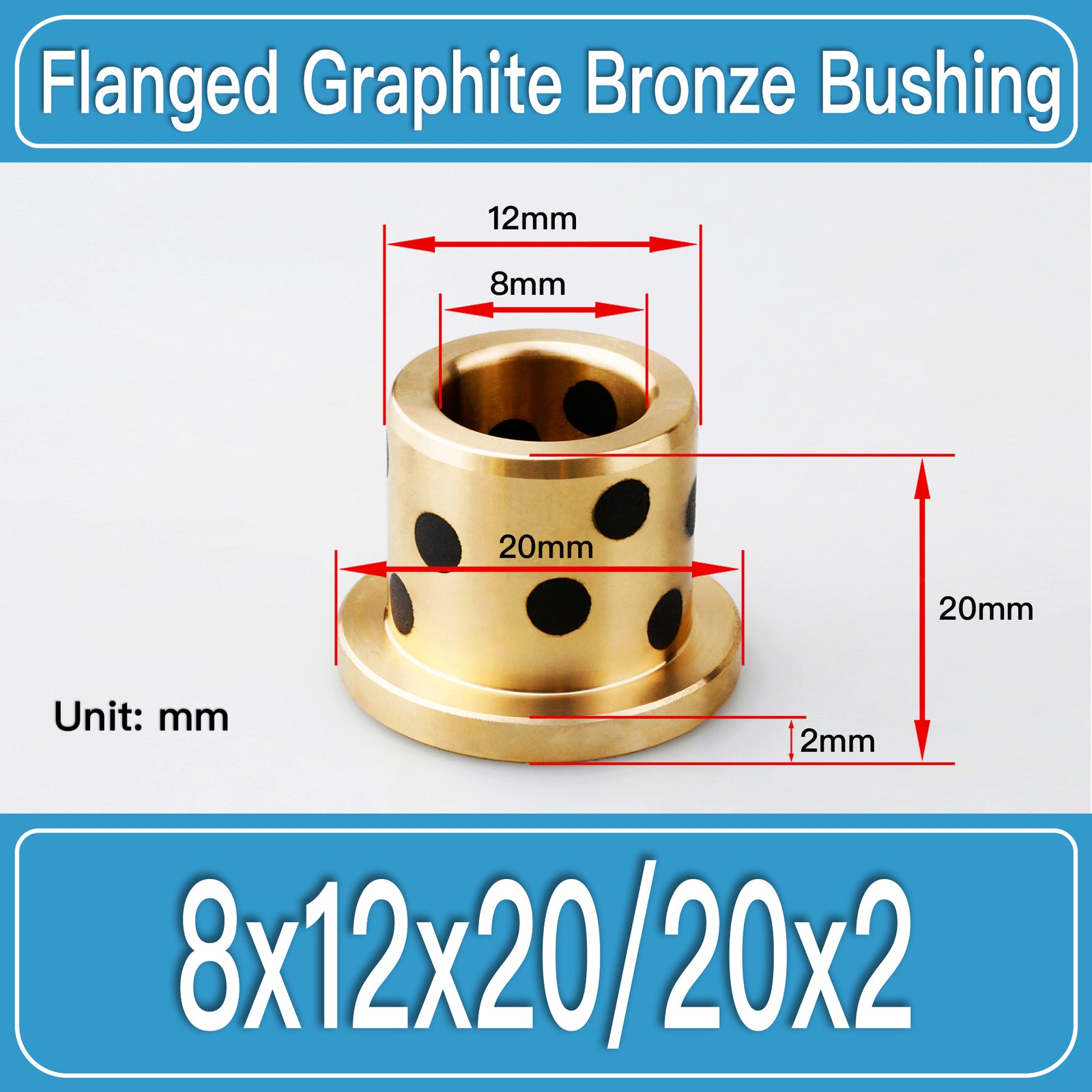

GFB-8X12X20-F20X2MM Graphite Bronze Flanged Bushings dimension drawing
View full-size image

Graphite Bronze Flanged Bushings · Industrial Standard Part

8x12x20/20x2mm Flanged Graphite Bronze Bushing Self-Lubricating Plain Bearing

Model
GFB-8X12X20-F20X2MM
Series
GFB Series
Brand
LineAxis

Selected specification

View full specifications
Type code
GFB-8X12X20-F20X2MM
Bore Diameter
8 mm
Outside Diameter
12 mm
Width
20 mm
Flange Outside Diameter
20 mm
Flange Thickness
2 mm
Material
Graphite Bronze

8 x 12 x 20 mm Flanged Graphite Bronze Bushing This self-lubricating flanged plain bearing is built for applications that need both sleeve support and flange positioning, with dependable wear resistance and reduced service needs. The graphite bronze construction helps buyers source a durable flanged bushing for mac...

Model-specific dimensions White-background product image Bulk purchasing support

Product details

Product overview

8x12x20/20x2mm Flanged Graphite Bronze Bushing Self-Lubricating Plain Bearing

This graphite bronze flanged bushing is listed as one independent model so bore, body, flange dimensions and repeat purchasing remain unambiguous.

  • Model: GFB-8X12X20-F20X2MM
  • Material: Graphite Bronze
  • Delivery time: 7 business days
  • Shipping origin: China

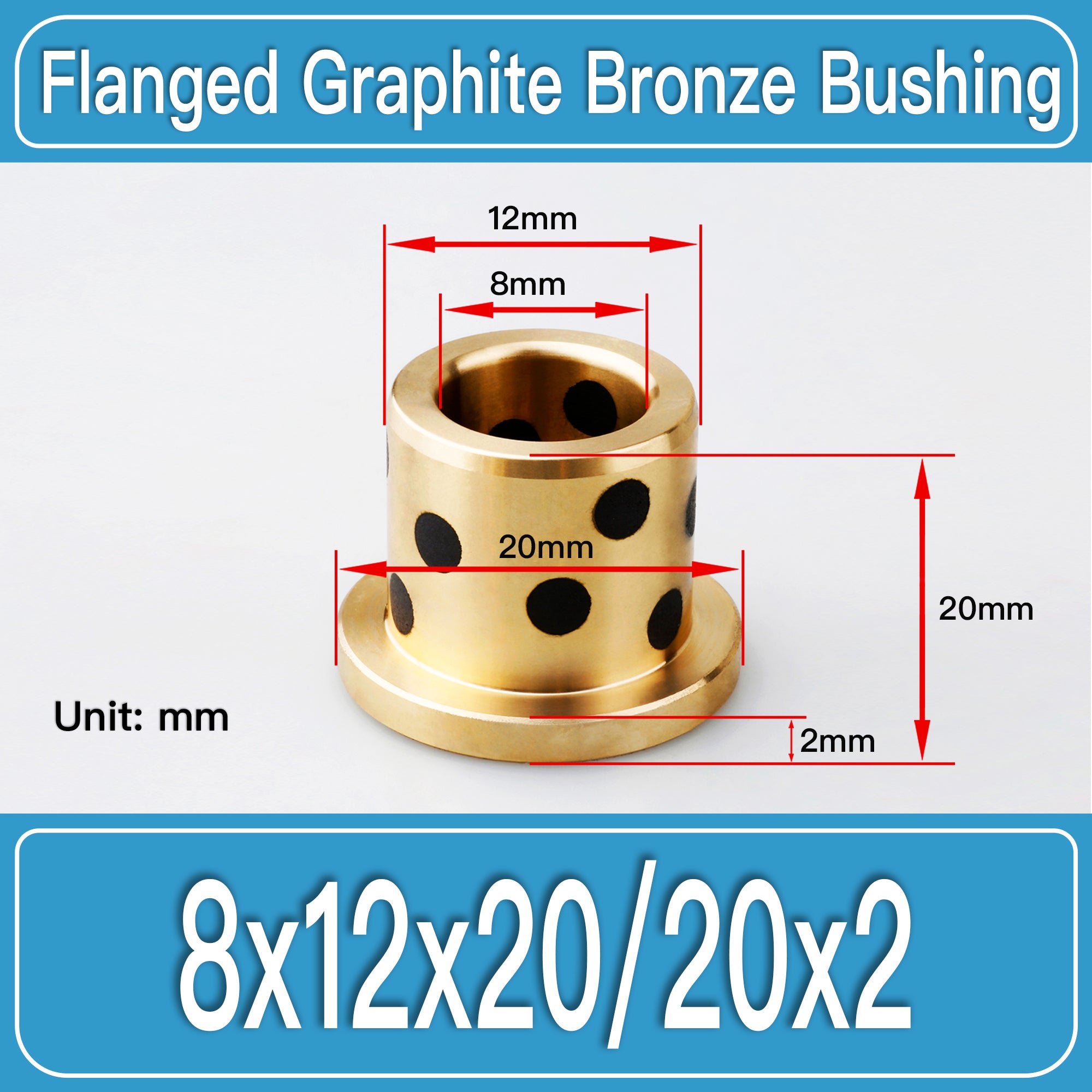

GFB-8X12X20-F20X2MM Graphite Bronze Flanged Bushings dimension drawing

Selected model

Specifications

Model GFB-8X12X20-F20X2MM Series GFB Series
Bore Diameter 8 mm Outside Diameter 12 mm
Width 20 mm Material Graphite Bronze
Flange Outside Diameter 20 mm Flange Thickness 2 mm
Package 1 pcs MOQ 1 pcs
Delivery time 7 business days Ship from China

Technical reference

Dimension drawing

L 20 mm d 8 mm D 12 mm GFB-8X12X20-F20X2MM

Drawing dimensions

d
8 mm
D
12 mm
L
20 mm

Order assurance

Quality, packing & delivery

Specification review

Model, dimensions, quantity and drawing requirements are checked before bulk order confirmation.

Industrial packing

Products are packed for export transport with model identification retained for repeat purchasing.

Delivery support

Default delivery time is 7 business days. DDP options are available by quote.
