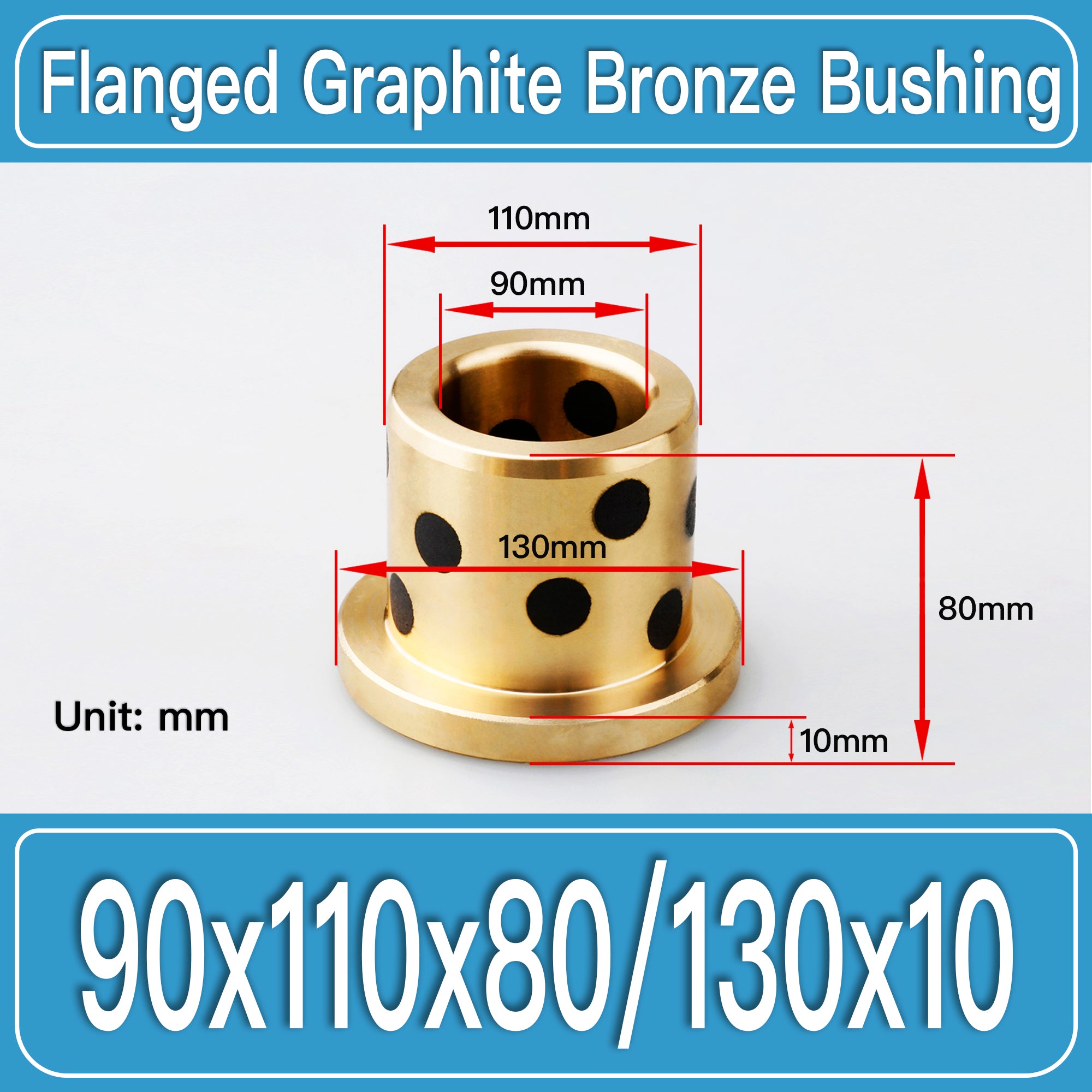

GFB-90X110X80-F130X10MM Graphite Bronze Flanged Bushings dimension drawing
View full-size image

Graphite Bronze Flanged Bushings · Industrial Standard Part

90x110x80/130x10mm Flanged Graphite Bronze Bushing Self-Lubricating Plain Bearin

Model
GFB-90X110X80-F130X10MM
Series
GFB Series
Brand
LineAxis

Selected specification

View full specifications
Type code
GFB-90X110X80-F130X10MM
Bore Diameter
90 mm
Outside Diameter
110 mm
Width
80 mm
Flange Outside Diameter
130 mm
Flange Thickness
10 mm
Material
Graphite Bronze

90 x 110 x 80 mm Flanged Graphite Bronze Bushing This self-lubricating flanged plain bearing is built for applications that need both sleeve support and flange positioning, with dependable wear resistance and reduced service needs. The graphite bronze construction helps buyers source a durable flanged bushing for m...

Model-specific dimensions White-background product image Bulk purchasing support

Product details

Product overview

90x110x80/130x10mm Flanged Graphite Bronze Bushing Self-Lubricating Plain Bearin

This graphite bronze flanged bushing is listed as one independent model so bore, body, flange dimensions and repeat purchasing remain unambiguous.

  • Model: GFB-90X110X80-F130X10MM
  • Material: Graphite Bronze
  • Delivery time: 7 business days
  • Shipping origin: China
GFB-90X110X80-F130X10MM Graphite Bronze Flanged Bushings dimension drawing

Selected model

Specifications

Model GFB-90X110X80-F130X10MM Series GFB Series
Bore Diameter 90 mm Outside Diameter 110 mm
Width 80 mm Material Graphite Bronze
Flange Outside Diameter 130 mm Flange Thickness 10 mm
Package 1 pcs MOQ 1 pcs
Delivery time 7 business days Ship from China

Technical reference

Dimension drawing

L 80 mm d 90 mm D 110 mm GFB-90X110X80-F130X10MM

Drawing dimensions

d
90 mm
D
110 mm
L
80 mm

Order assurance

Quality, packing & delivery

Specification review

Model, dimensions, quantity and drawing requirements are checked before bulk order confirmation.

Industrial packing

Products are packed for export transport with model identification retained for repeat purchasing.

Delivery support

Default delivery time is 7 business days. DDP options are available by quote.
