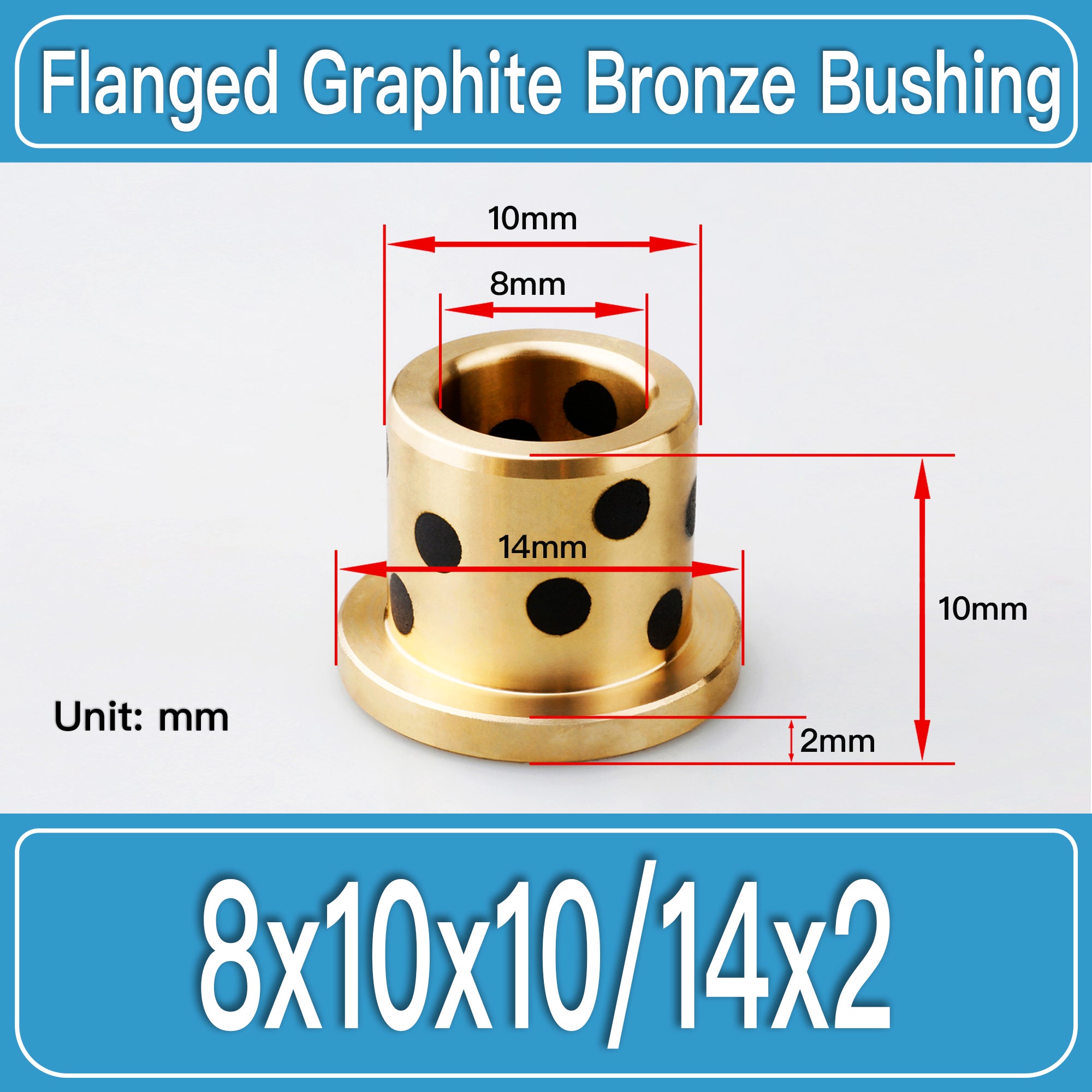

GFB-8X10X10-F14X2MM Graphite Bronze Flanged Bushings dimension drawing
View full-size image

Graphite Bronze Flanged Bushings · Industrial Standard Part

2PCS 8x10x10/14x2mm Flanged Graphite Bronze Bushing Self-Lubricating Plain Beari

Model
GFB-8X10X10-F14X2MM
Series
GFB Series
Brand
LineAxis

Selected specification

View full specifications
Type code
GFB-8X10X10-F14X2MM
Bore Diameter
8 mm
Outside Diameter
10 mm
Width
10 mm
Flange Outside Diameter
14 mm
Flange Thickness
2 mm
Material
Graphite Bronze

8 x 10 x 10 mm Flanged Graphite Bronze Bushing This self-lubricating flanged plain bearing is built for applications that need both sleeve support and flange positioning, with dependable wear resistance and reduced service needs. The graphite bronze construction helps buyers source a durable flanged bushing for mac...

Model-specific dimensions White-background product image Bulk purchasing support

Product details

Product overview

2PCS 8x10x10/14x2mm Flanged Graphite Bronze Bushing Self-Lubricating Plain Beari

This graphite bronze flanged bushing is listed as one independent model so bore, body, flange dimensions and repeat purchasing remain unambiguous.

  • Model: GFB-8X10X10-F14X2MM
  • Material: Graphite Bronze
  • Delivery time: 7 business days
  • Shipping origin: China
GFB-8X10X10-F14X2MM Graphite Bronze Flanged Bushings dimension drawing

Selected model

Specifications

Model GFB-8X10X10-F14X2MM Series GFB Series
Bore Diameter 8 mm Outside Diameter 10 mm
Width 10 mm Material Graphite Bronze
Flange Outside Diameter 14 mm Flange Thickness 2 mm
Package 1 pcs MOQ 1 pcs
Delivery time 7 business days Ship from China

Technical reference

Dimension drawing

L 10 mm d 8 mm D 10 mm GFB-8X10X10-F14X2MM

Drawing dimensions

d
8 mm
D
10 mm
L
10 mm

Order assurance

Quality, packing & delivery

Specification review

Model, dimensions, quantity and drawing requirements are checked before bulk order confirmation.

Industrial packing

Products are packed for export transport with model identification retained for repeat purchasing.

Delivery support

Default delivery time is 7 business days. DDP options are available by quote.
