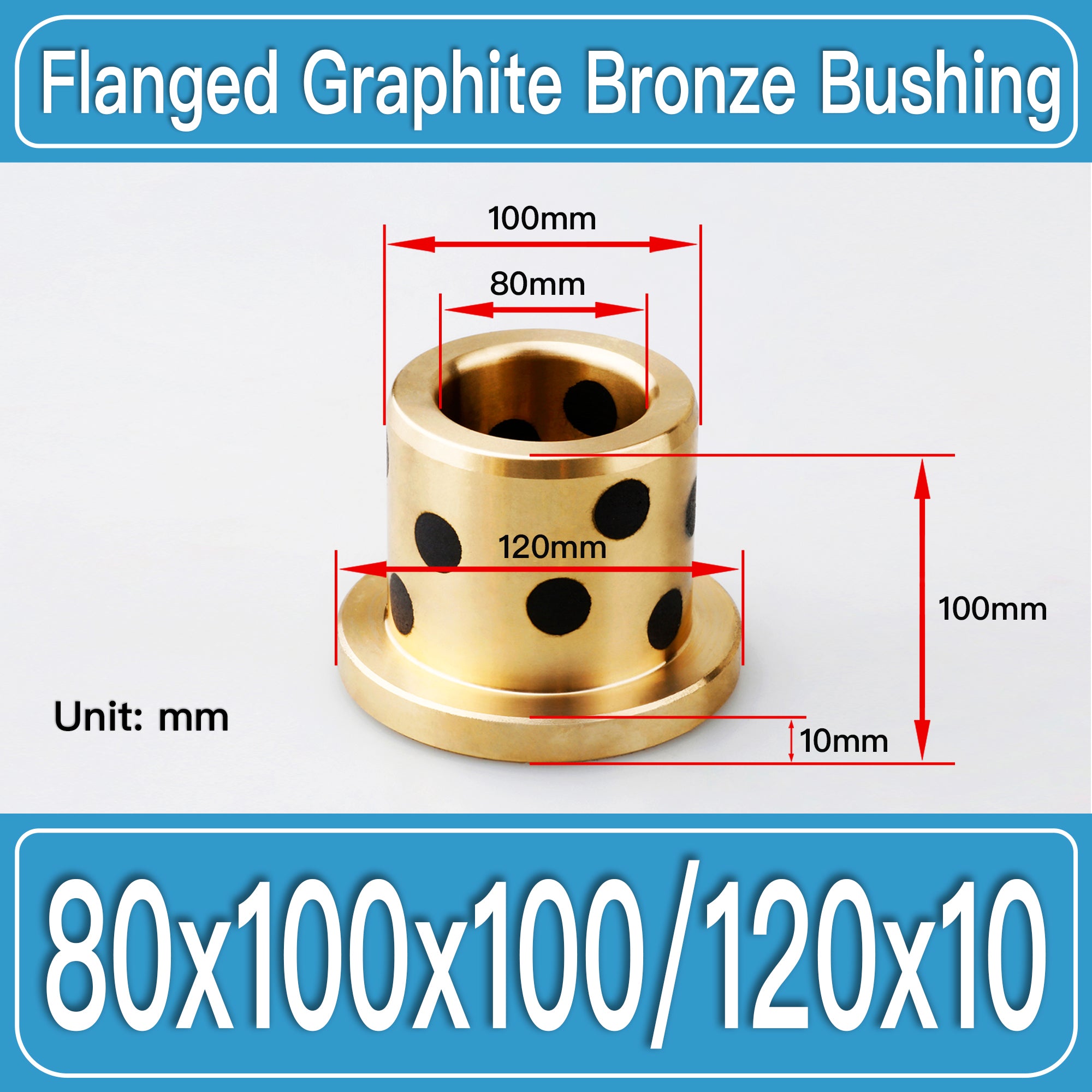

GFB-80X100X100-F120X10MM Graphite Bronze Flanged Bushings dimension drawing
View full-size image

Graphite Bronze Flanged Bushings · Industrial Standard Part

80x100x100/120x10mm Flanged Graphite Bronze Bushing Self-Lubricating Plain Beari

Model
GFB-80X100X100-F120X10MM
Series
GFB Series
Brand
LineAxis

Selected specification

View full specifications
Type code
GFB-80X100X100-F120X10MM
Bore Diameter
80 mm
Outside Diameter
100 mm
Width
100 mm
Flange Outside Diameter
120 mm
Flange Thickness
10 mm
Material
Graphite Bronze

80 x 100 x 100 mm Flanged Graphite Bronze Bushing This self-lubricating flanged plain bearing is built for applications that need both sleeve support and flange positioning, with dependable wear resistance and reduced service needs. The graphite bronze construction helps buyers source a durable flanged bushing for ...

Model-specific dimensions White-background product image Bulk purchasing support

Product details

Product overview

80x100x100/120x10mm Flanged Graphite Bronze Bushing Self-Lubricating Plain Beari

This graphite bronze flanged bushing is listed as one independent model so bore, body, flange dimensions and repeat purchasing remain unambiguous.

  • Model: GFB-80X100X100-F120X10MM
  • Material: Graphite Bronze
  • Delivery time: 7 business days
  • Shipping origin: China
GFB-80X100X100-F120X10MM Graphite Bronze Flanged Bushings dimension drawing

Selected model

Specifications

Model GFB-80X100X100-F120X10MM Series GFB Series
Bore Diameter 80 mm Outside Diameter 100 mm
Width 100 mm Material Graphite Bronze
Flange Outside Diameter 120 mm Flange Thickness 10 mm
Package 1 pcs MOQ 1 pcs
Delivery time 7 business days Ship from China

Technical reference

Dimension drawing

L 100 mm d 80 mm D 100 mm GFB-80X100X100-F120X10MM

Drawing dimensions

d
80 mm
D
100 mm
L
100 mm

Order assurance

Quality, packing & delivery

Specification review

Model, dimensions, quantity and drawing requirements are checked before bulk order confirmation.

Industrial packing

Products are packed for export transport with model identification retained for repeat purchasing.

Delivery support

Default delivery time is 7 business days. DDP options are available by quote.
