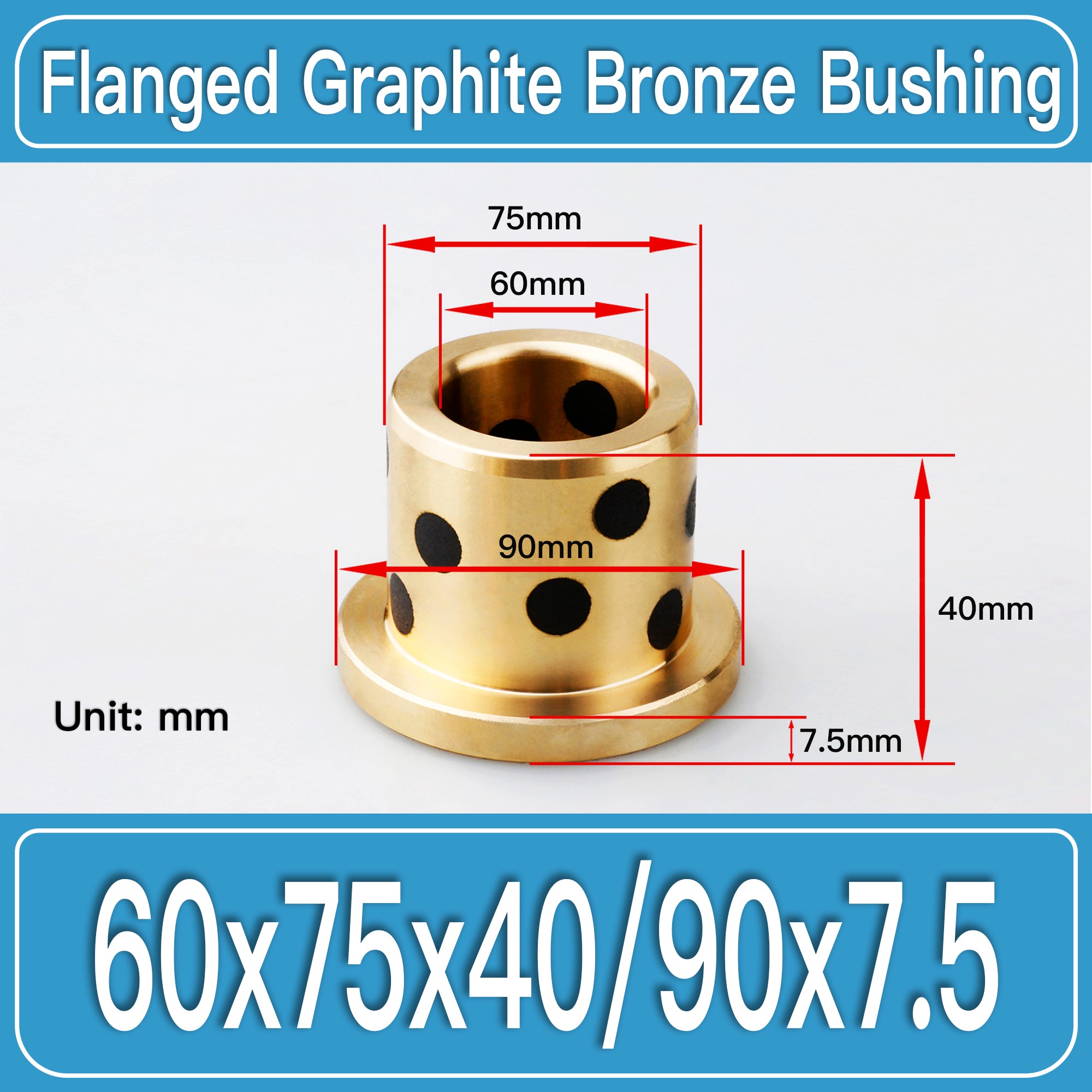

GFB-60X75X40-F90X7P5MM Graphite Bronze Flanged Bushings dimension drawing
View full-size image

Graphite Bronze Flanged Bushings · Industrial Standard Part

60x75x40/90x7.5mm Flanged Graphite Bronze Bushing Self-Lubricating Plain Bearing

Model
GFB-60X75X40-F90X7P5MM
Series
GFB Series
Brand
LineAxis

Selected specification

View full specifications
Type code
GFB-60X75X40-F90X7P5MM
Bore Diameter
60 mm
Outside Diameter
75 mm
Width
40 mm
Flange Outside Diameter
90 mm
Flange Thickness
7P5 mm
Material
Graphite Bronze

60 x 75 x 40 mm Flanged Graphite Bronze Bushing This self-lubricating flanged plain bearing is built for applications that need both sleeve support and flange positioning, with dependable wear resistance and reduced service needs. The graphite bronze construction helps buyers source a durable flanged bushing for ma...

Model-specific dimensions White-background product image Bulk purchasing support

Product details

Product overview

60x75x40/90x7.5mm Flanged Graphite Bronze Bushing Self-Lubricating Plain Bearing

This graphite bronze flanged bushing is listed as one independent model so bore, body, flange dimensions and repeat purchasing remain unambiguous.

  • Model: GFB-60X75X40-F90X7P5MM
  • Material: Graphite Bronze
  • Delivery time: 7 business days
  • Shipping origin: China
GFB-60X75X40-F90X7P5MM Graphite Bronze Flanged Bushings dimension drawing

Selected model

Specifications

Model GFB-60X75X40-F90X7P5MM Series GFB Series
Bore Diameter 60 mm Outside Diameter 75 mm
Width 40 mm Material Graphite Bronze
Flange Outside Diameter 90 mm Flange Thickness 7P5 mm
Package 1 pcs MOQ 1 pcs
Delivery time 7 business days Ship from China

Technical reference

Dimension drawing

L 40 mm d 60 mm D 75 mm GFB-60X75X40-F90X7P5MM

Drawing dimensions

d
60 mm
D
75 mm
L
40 mm

Order assurance

Quality, packing & delivery

Specification review

Model, dimensions, quantity and drawing requirements are checked before bulk order confirmation.

Industrial packing

Products are packed for export transport with model identification retained for repeat purchasing.

Delivery support

Default delivery time is 7 business days. DDP options are available by quote.
