Specification review
Model, dimensions, quantity and drawing requirements are checked before bulk order confirmation.
SF-1 Composite Sleeve Bushings · Industrial Standard Part
SF-1 65x70x28mm Steel-Backed Composite Sleeve Bushing Self-Lubricating 1PC
- Model
- SF-1 65X70X28MM
- Series
- SF-1 Series
- Brand
- LineAxis
Selected specification
View full specifications- Type code
- SF
- Bore Diameter
- 65 mm
- Outside Diameter
- 70 mm
- Width
- 28 mm
- Material
- SF-1 steel-backed composite, bronze interlayer, PTFE sliding layer
1PC SF-1 Composite Sleeve Bushing - 65 x 70 x 28 mm This SF-1 plain sleeve bushing is a practical replacement part for shaft support, sliding motion, fixtures, small machinery, repair work, and industrial maintenance. The steel-backed composite structure with a low-friction sliding layer is designed for dry or ligh...

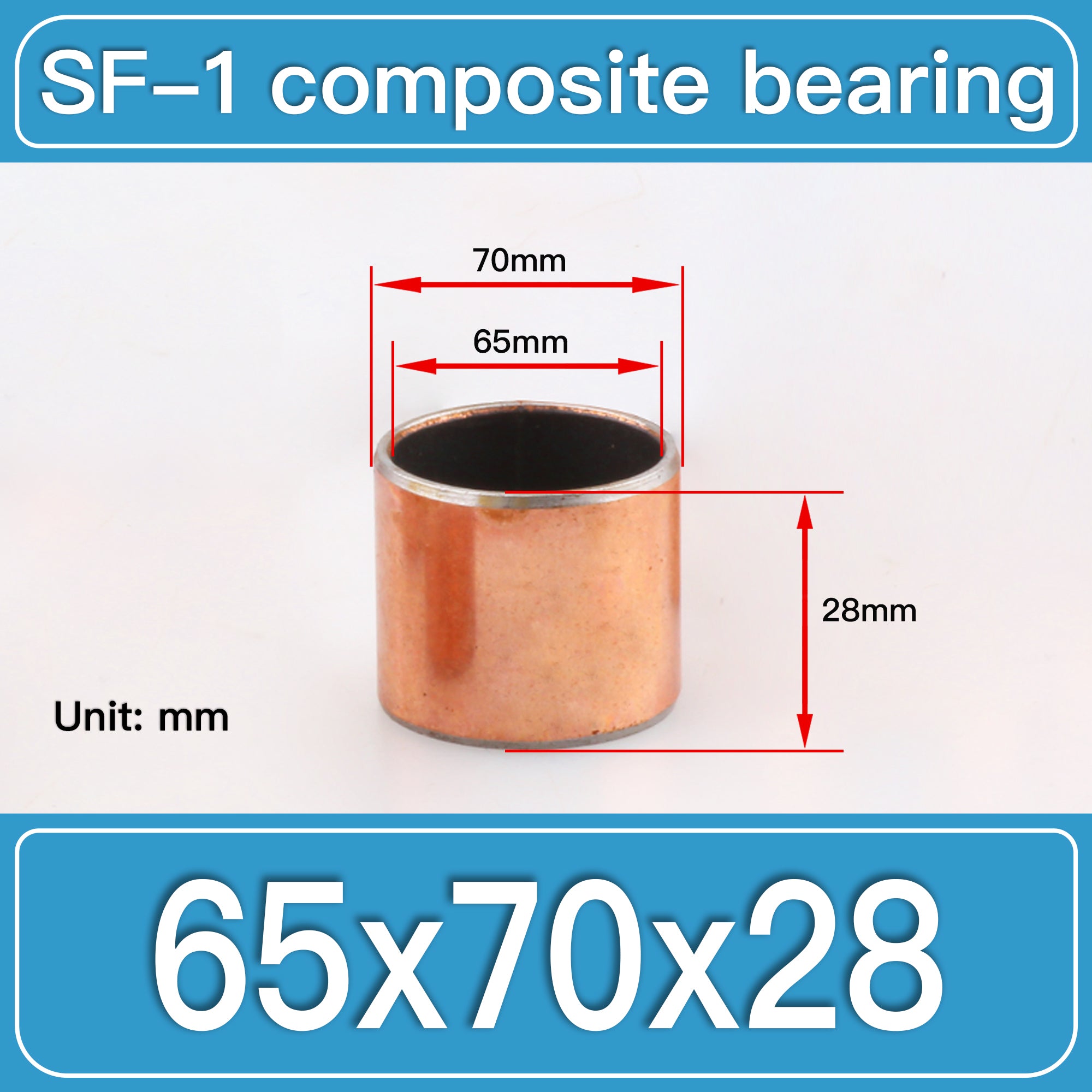

Model-specific dimensions
White-background product image
Bulk purchasing support
Product details
Product overview
SF-1 65x70x28mm Steel-Backed Composite Sleeve Bushing Self-Lubricating 1PC
This SF-1 composite sleeve bushing is listed as one independent model so bore, outside diameter, width and repeat purchasing remain unambiguous.
- Model: SF-1 65X70X28MM
- Material: SF-1 steel-backed composite, bronze interlayer, PTFE sliding layer
- Delivery time: 7 business days
- Shipping origin: China
Selected model
Specifications
| Model | SF-1 65X70X28MM | Series | SF-1 Series |
|---|---|---|---|
| Bore Diameter | 65 mm | Outside Diameter | 70 mm |
| Width | 28 mm | Material | SF-1 steel-backed composite, bronze interlayer, PTFE sliding layer |
| Package | 1 pcs | MOQ | 1 pcs |
| Delivery time | 7 business days | Ship from | China |
Technical reference
Dimension drawing
B 28 mm
d 65 mm
D 70 mm
SF-1 65X70X28MM
Drawing dimensions
- d
- 65 mm
- D
- 70 mm
- B
- 28 mm
Order assurance
Quality, packing & delivery
Industrial packing
Products are packed for export transport with model identification retained for repeat purchasing.
Delivery support
Default delivery time is 7 business days. DDP options are available by quote.
