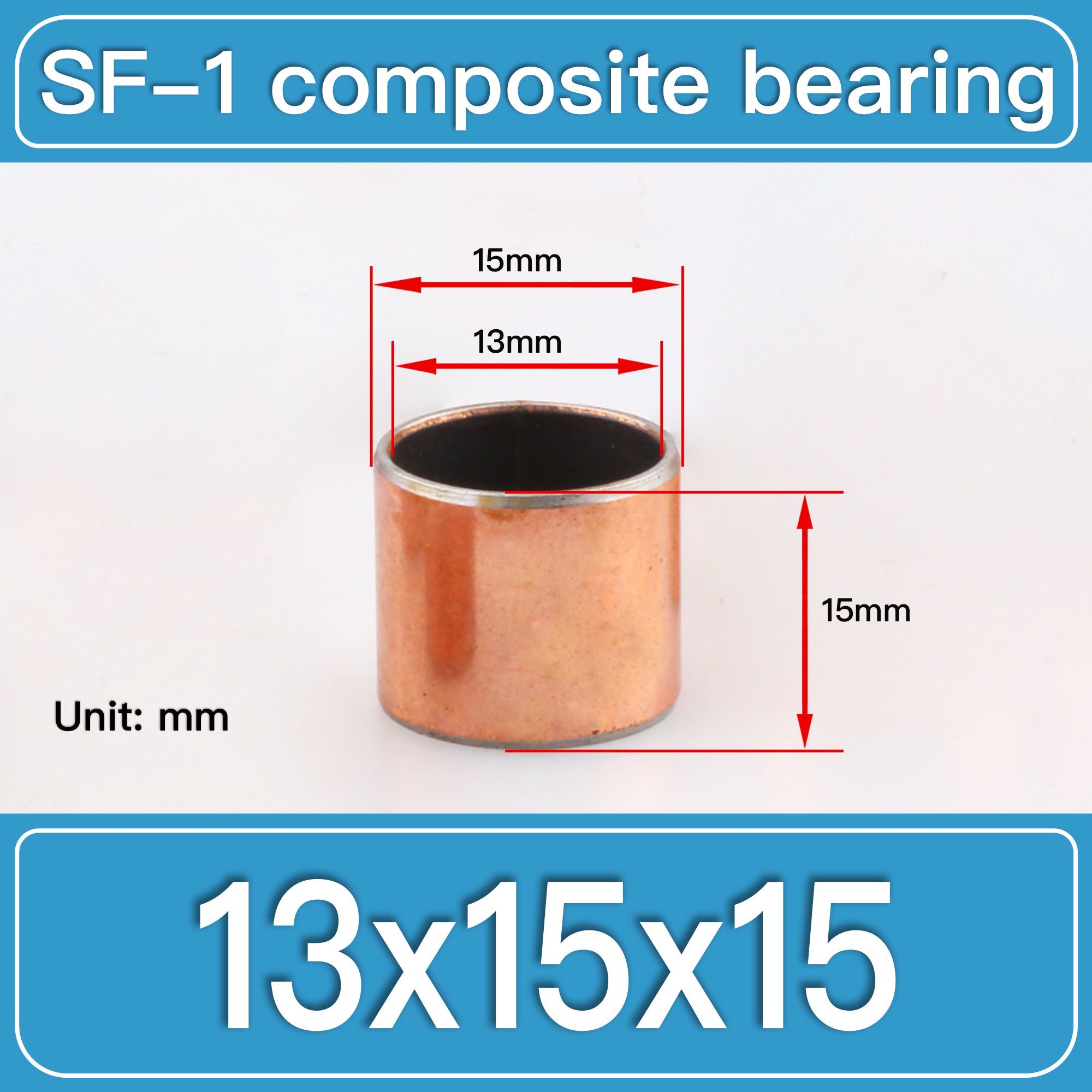

SF-1 13X15X15MM SF-1 Steel-Backed Composite Sleeve Bushings dimension drawing
View full-size image

SF-1 Composite Sleeve Bushings · Industrial Standard Part

SF-1 13x15x15mm Steel-Backed Composite Sleeve Bushing Self-Lubricating 10PCS

Model
SF-1 13X15X15MM
Series
SF-1 Series
Brand
LineAxis

Selected specification

View full specifications
Type code
SF
Bore Diameter
13 mm
Outside Diameter
15 mm
Width
15 mm
Material
SF-1 steel-backed composite, bronze interlayer, PTFE sliding layer

10PCS SF-1 Composite Sleeve Bushing - 13 x 15 x 15 mm This SF-1 plain sleeve bushing is a practical replacement part for shaft support, sliding motion, fixtures, small machinery, repair work, and industrial maintenance. The steel-backed composite structure with a low-friction sliding layer is designed for dry or li...

Model-specific dimensions White-background product image Bulk purchasing support

Product details

Product overview

SF-1 13x15x15mm Steel-Backed Composite Sleeve Bushing Self-Lubricating 10PCS

This SF-1 composite sleeve bushing is listed as one independent model so bore, outside diameter, width and repeat purchasing remain unambiguous.

  • Model: SF-1 13X15X15MM
  • Material: SF-1 steel-backed composite, bronze interlayer, PTFE sliding layer
  • Delivery time: 7 business days
  • Shipping origin: China
SF-1 13X15X15MM SF-1 Steel-Backed Composite Sleeve Bushings dimension drawing

Selected model

Specifications

Model SF-1 13X15X15MM Series SF-1 Series
Bore Diameter 13 mm Outside Diameter 15 mm
Width 15 mm Material SF-1 steel-backed composite, bronze interlayer, PTFE sliding layer
Package 1 pcs MOQ 1 pcs
Delivery time 7 business days Ship from China

Technical reference

Dimension drawing

B 15 mm d 13 mm D 15 mm SF-1 13X15X15MM

Drawing dimensions

d
13 mm
D
15 mm
B
15 mm

Order assurance

Quality, packing & delivery

Specification review

Model, dimensions, quantity and drawing requirements are checked before bulk order confirmation.

Industrial packing

Products are packed for export transport with model identification retained for repeat purchasing.

Delivery support

Default delivery time is 7 business days. DDP options are available by quote.
