Linear Bearings · Industrial Standard Part
LMB10UU Linear Ball Bearing, 5/8 in × 1-1/8 in × 1-1/2 in, 2-Pack
- Model
- LMB10UU
- Series
- LMB Series
- Brand
- LineAxis
Selected specification
View full specifications- Type code
- LMB10UU
- Shaft Diameter
- 5/8 in
- Outside Diameter
- 1-1/8 in
- Bearing Length
- 1-1/2 in
- Material
- Bearing Steel
LMB10UU sealed linear ball bearing for matching round shafts in CNC machines, 3D printers, automation equipment, fixtures, and maintenance applications. Series: LMB Dimensions: 5/8 in bore × 1-1/8 in outside diameter × 1-1/2 in length Material: Bearing steel Seal: UU double seal Package: 2 pcs Delivery time: 7...
Model-specific dimensions
White-background product image
Bulk purchasing support
Product details
Product overview
LMB10UU Linear Ball Bearing, 5/8 in × 1-1/8 in × 1-1/2 in, 2-Pack
This linear ball bearing is listed as one independent model so shaft fit, outside diameter, bearing length and repeat purchasing remain unambiguous.
- Model: LMB10UU
- Material: Bearing Steel
- Delivery time: 7 business days
- Shipping origin: China
Selected model
Specifications
| Model | LMB10UU | Series | LMB Series |
|---|---|---|---|
| Shaft Diameter | 5/8 in | Outside Diameter | 1-1/8 in |
| Bearing Length | 1-1/2 in | Material | Bearing Steel |
| Package | 1 pcs | MOQ | 1 pcs |
| Delivery time | 7 business days | Ship from | China |
Technical reference

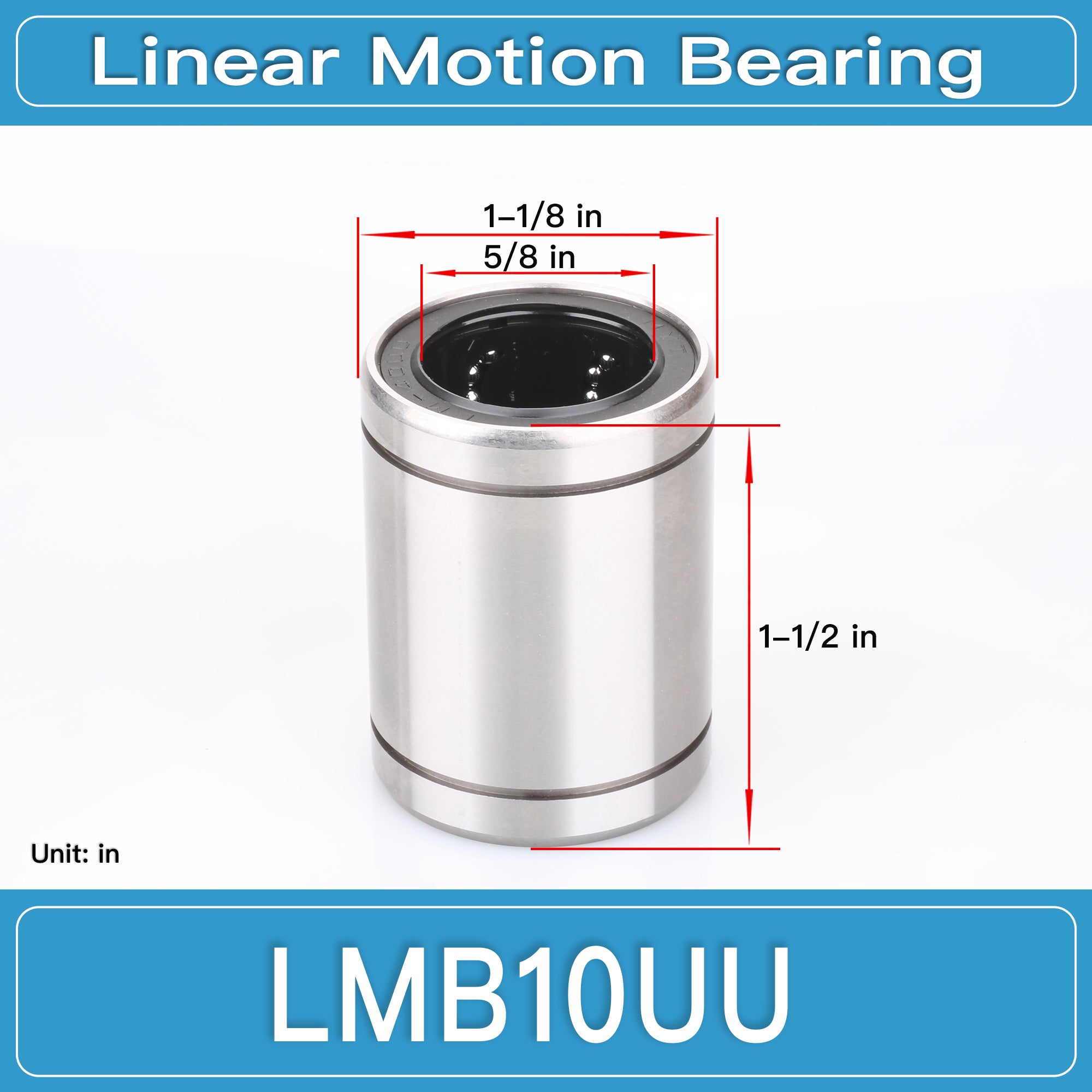

Dimension drawing
L 1-1/2 in
d 5/8 in
D 1-1/8 in
LMB10UU
Drawing dimensions
- d
- 5/8 in
- D
- 1-1/8 in
- L
- 1-1/2 in
Order assurance
Quality, packing & delivery
Industrial packing
Products are packed for export transport with model identification retained for repeat purchasing.
Delivery support
Default delivery time is 7 business days. DDP options are available by quote.
LMB8UU Linear Ball Bearing, 1/2 in × 7/8 in × 1-1/4 in, 2-Pack
LMB8UU
$15.99

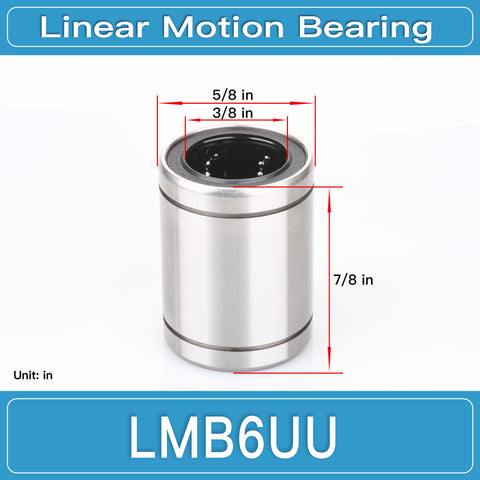

LMB6UU Linear Ball Bearing, 3/8 in × 5/8 in × 7/8 in, 5-Pack
LMB6UU
$15.99
LMB4UU Linear Ball Bearing, 1/4 in × 1/2 in × 3/4 in, 5-Pack
LMB4UU
$15.99

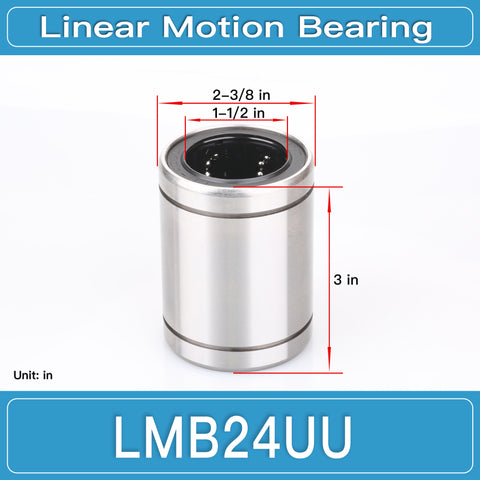

LMB24UU Linear Ball Bearing, 1-1/2 in × 2-3/8 in × 3 in, 1-Pack
