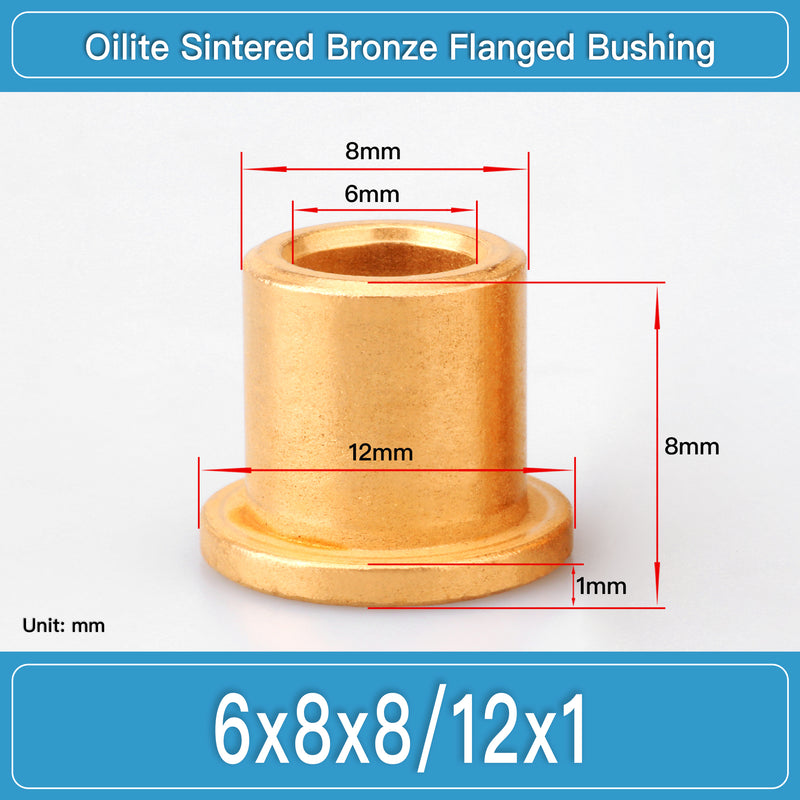

BBF6X8X8-12X1 Oilite Sintered Bronze Flanged Bushings dimension drawing
View full-size image

Flanged Bronze Bushings · Industrial Standard Part

12PCS 6x8x8/12x1mm Oilite Sintered Bronze Flanged Bushing Bearing

Model
BBF6X8X8-12X1
Series
BBF Series
Brand
LineAxis

Selected specification

View full specifications
Type code
BBF6X8X8
Bore Diameter
6.0 mm
Outside Diameter
8.0 mm
Width
8.0 mm
Flange Outside Diameter
12.0 mm
Flange Thickness
1.0 mm
Material
Oilite Sintered Bronze

6 x 8 x 8 mm Oilite Sintered Bronze Flanged Bushing This flanged self-lubricating sleeve bearing is suitable for repair, replacement, light machinery, hobby equipment, electric tools, and general industrial applications requiring low-maintenance rotating support. The sintered bronze structure is oil-impregnated for...

Model-specific dimensions White-background product image Bulk purchasing support

Product details

Product overview

12PCS 6x8x8/12x1mm Oilite Sintered Bronze Flanged Bushing Bearing

This flanged bronze bushing is listed as one independent model so bore, body, flange dimensions and repeat purchasing remain unambiguous.

  • Model: BBF6X8X8-12X1
  • Material: Oilite Sintered Bronze
  • Delivery time: 7 business days
  • Shipping origin: China
BBF6X8X8-12X1 Oilite Sintered Bronze Flanged Bushings dimension drawing

Selected model

Specifications

Model BBF6X8X8-12X1 Series BBF Series
Bore Diameter 6.0 mm Outside Diameter 8.0 mm
Width 8.0 mm Material Oilite Sintered Bronze
Flange Outside Diameter 12.0 mm Flange Thickness 1.0 mm
Package 1 pcs MOQ 1 pcs
Delivery time 7 business days Ship from China

Technical reference

Dimension drawing

L 8.0 mm d 6.0 mm D 8.0 mm BBF6X8X8-12X1

Drawing dimensions

d
6.0 mm
D
8.0 mm
L
8.0 mm

Order assurance

Quality, packing & delivery

Specification review

Model, dimensions, quantity and drawing requirements are checked before bulk order confirmation.

Industrial packing

Products are packed for export transport with model identification retained for repeat purchasing.

Delivery support

Default delivery time is 7 business days. DDP options are available by quote.
