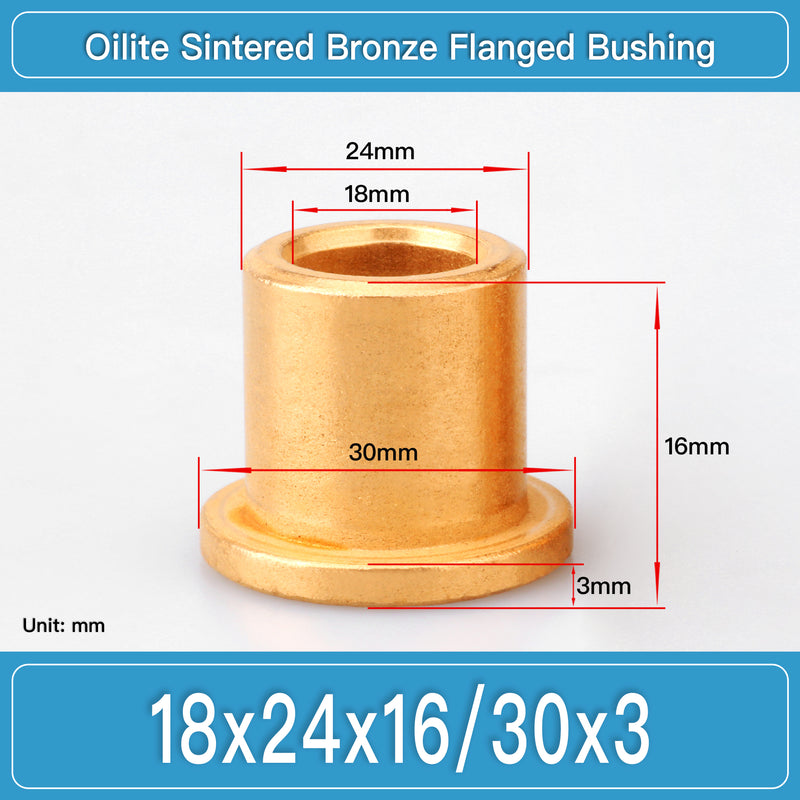

BBF18X24X16-30X3 Oilite Sintered Bronze Flanged Bushings dimension drawing
View full-size image

Flanged Bronze Bushings · Industrial Standard Part

18x24x16/30x3mm Oilite Sintered Bronze Flanged Bushing Self-Lubricating Bearing 2PCS

Model
BBF18X24X16-30X3
Series
BBF Series
Brand
LineAxis

Selected specification

View full specifications
Type code
BBF18X24X16
Bore Diameter
18.0 mm
Outside Diameter
24.0 mm
Width
16.0 mm
Flange Outside Diameter
30.0 mm
Flange Thickness
3.0 mm
Material
Oilite Sintered Bronze

18 x 24 x 16 mm Oilite Sintered Bronze Flanged Bushing This flanged self-lubricating sleeve bearing is suitable for repair, replacement, light machinery, hobby equipment, electric tools, and general industrial applications requiring low-maintenance rotating support. The sintered bronze structure is oil-impregnated ...

Model-specific dimensions White-background product image Bulk purchasing support

Product details

Product overview

18x24x16/30x3mm Oilite Sintered Bronze Flanged Bushing Self-Lubricating Bearing 2PCS

This flanged bronze bushing is listed as one independent model so bore, body, flange dimensions and repeat purchasing remain unambiguous.

  • Model: BBF18X24X16-30X3
  • Material: Oilite Sintered Bronze
  • Delivery time: 7 business days
  • Shipping origin: China
BBF18X24X16-30X3 Oilite Sintered Bronze Flanged Bushings dimension drawing

Selected model

Specifications

Model BBF18X24X16-30X3 Series BBF Series
Bore Diameter 18.0 mm Outside Diameter 24.0 mm
Width 16.0 mm Material Oilite Sintered Bronze
Flange Outside Diameter 30.0 mm Flange Thickness 3.0 mm
Package 1 pcs MOQ 1 pcs
Delivery time 7 business days Ship from China

Technical reference

Dimension drawing

L 16.0 mm d 18.0 mm D 24.0 mm BBF18X24X16-30X3

Drawing dimensions

d
18.0 mm
D
24.0 mm
L
16.0 mm

Order assurance

Quality, packing & delivery

Specification review

Model, dimensions, quantity and drawing requirements are checked before bulk order confirmation.

Industrial packing

Products are packed for export transport with model identification retained for repeat purchasing.

Delivery support

Default delivery time is 7 business days. DDP options are available by quote.
