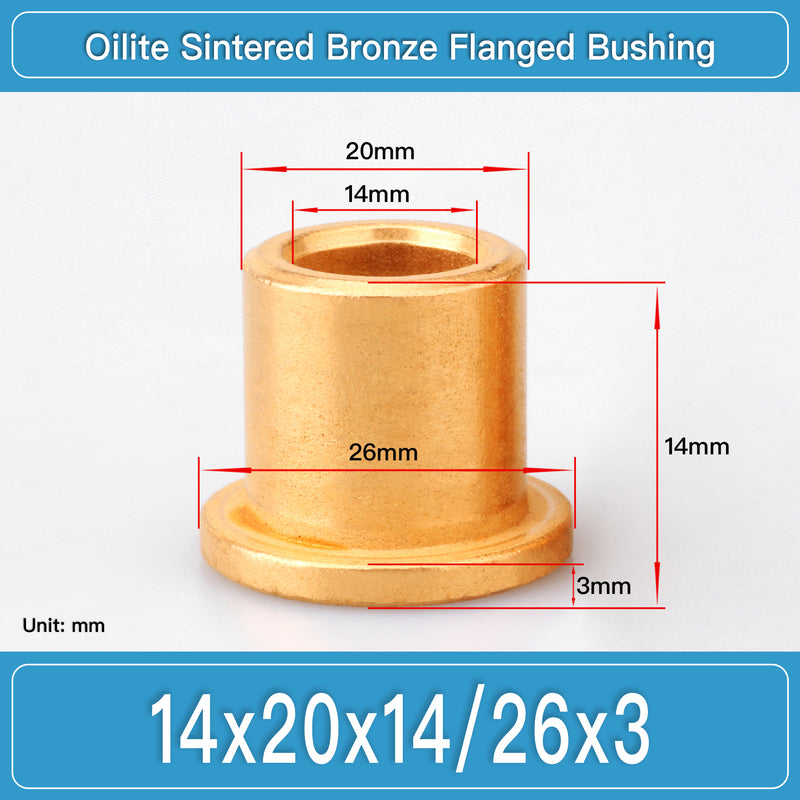

BBF14X20X14-26X3 Oilite Sintered Bronze Flanged Bushings dimension drawing
View full-size image

Flanged Bronze Bushings · Industrial Standard Part

14x20x14/26x3mm Oilite Sintered Bronze Flanged Bushing Self-Lubricating Bearing 2PCS

Model
BBF14X20X14-26X3
Series
BBF Series
Brand
LineAxis

Selected specification

View full specifications
Type code
BBF14X20X14
Bore Diameter
14.0 mm
Outside Diameter
20.0 mm
Width
14.0 mm
Flange Outside Diameter
26.0 mm
Flange Thickness
3.0 mm
Material
Oilite Sintered Bronze

14 x 20 x 14 mm Oilite Sintered Bronze Flanged Bushing This flanged self-lubricating sleeve bearing is suitable for repair, replacement, light machinery, hobby equipment, electric tools, and general industrial applications requiring low-maintenance rotating support. The sintered bronze structure is oil-impregnated ...

Model-specific dimensions White-background product image Bulk purchasing support

Product details

Product overview

14x20x14/26x3mm Oilite Sintered Bronze Flanged Bushing Self-Lubricating Bearing 2PCS

This flanged bronze bushing is listed as one independent model so bore, body, flange dimensions and repeat purchasing remain unambiguous.

  • Model: BBF14X20X14-26X3
  • Material: Oilite Sintered Bronze
  • Delivery time: 7 business days
  • Shipping origin: China
BBF14X20X14-26X3 Oilite Sintered Bronze Flanged Bushings dimension drawing

Selected model

Specifications

Model BBF14X20X14-26X3 Series BBF Series
Bore Diameter 14.0 mm Outside Diameter 20.0 mm
Width 14.0 mm Material Oilite Sintered Bronze
Flange Outside Diameter 26.0 mm Flange Thickness 3.0 mm
Package 1 pcs MOQ 1 pcs
Delivery time 7 business days Ship from China

Technical reference

Dimension drawing

L 14.0 mm d 14.0 mm D 20.0 mm BBF14X20X14-26X3

Drawing dimensions

d
14.0 mm
D
20.0 mm
L
14.0 mm

Order assurance

Quality, packing & delivery

Specification review

Model, dimensions, quantity and drawing requirements are checked before bulk order confirmation.

Industrial packing

Products are packed for export transport with model identification retained for repeat purchasing.

Delivery support

Default delivery time is 7 business days. DDP options are available by quote.
