LineAxis

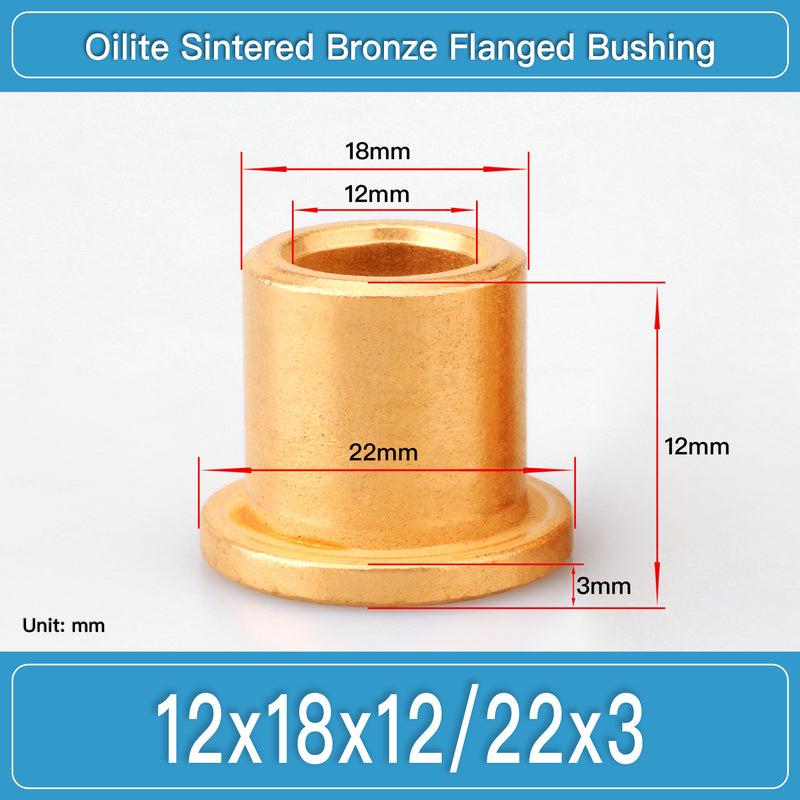

BBF12X18X12-22X3 Oilite Sintered Bronze Flanged Bushings dimension drawing
View full-size image

Flanged Bronze Bushings · Industrial Standard Part

12x18x12/22x3mm Oilite Sintered Bronze Flanged Bushing Self-Lubricating Bearing 2PCS

Model
BBF12X18X12-22X3
Series
BBF Series
Brand
LineAxis

Selected specification

View full specifications
Type code
BBF12X18X12
Bore Diameter
12.0 mm
Outside Diameter
18.0 mm
Width
12.0 mm
Flange Outside Diameter
22.0 mm
Flange Thickness
3.0 mm
Material
Oilite Sintered Bronze

12 x 18 x 12 mm Oilite Sintered Bronze Flanged Bushing This flanged self-lubricating sleeve bearing is suitable for repair, replacement, light machinery, hobby equipment, electric tools, and general industrial applications requiring low-maintenance rotating support. The sintered bronze structure is oil-impregnated ...

Model-specific dimensions White-background product image Bulk purchasing support

Product details

Product overview

12x18x12/22x3mm Oilite Sintered Bronze Flanged Bushing Self-Lubricating Bearing 2PCS

This flanged bronze bushing is listed as one independent model so bore, body, flange dimensions and repeat purchasing remain unambiguous.

  • Model: BBF12X18X12-22X3
  • Material: Oilite Sintered Bronze
  • Delivery time: 7 business days
  • Shipping origin: China
BBF12X18X12-22X3 Oilite Sintered Bronze Flanged Bushings dimension drawing

Selected model

Specifications

Model BBF12X18X12-22X3 Series BBF Series
Bore Diameter 12.0 mm Outside Diameter 18.0 mm
Width 12.0 mm Material Oilite Sintered Bronze
Flange Outside Diameter 22.0 mm Flange Thickness 3.0 mm
Package 1 pcs MOQ 1 pcs
Delivery time 7 business days Ship from China

Technical reference

Dimension drawing

L 12.0 mm d 12.0 mm D 18.0 mm BBF12X18X12-22X3

Drawing dimensions

d
12.0 mm
D
18.0 mm
L
12.0 mm

Order assurance

Quality, packing & delivery

Specification review

Model, dimensions, quantity and drawing requirements are checked before bulk order confirmation.

Industrial packing

Products are packed for export transport with model identification retained for repeat purchasing.

Delivery support

Default delivery time is 7 business days. DDP options are available by quote.
