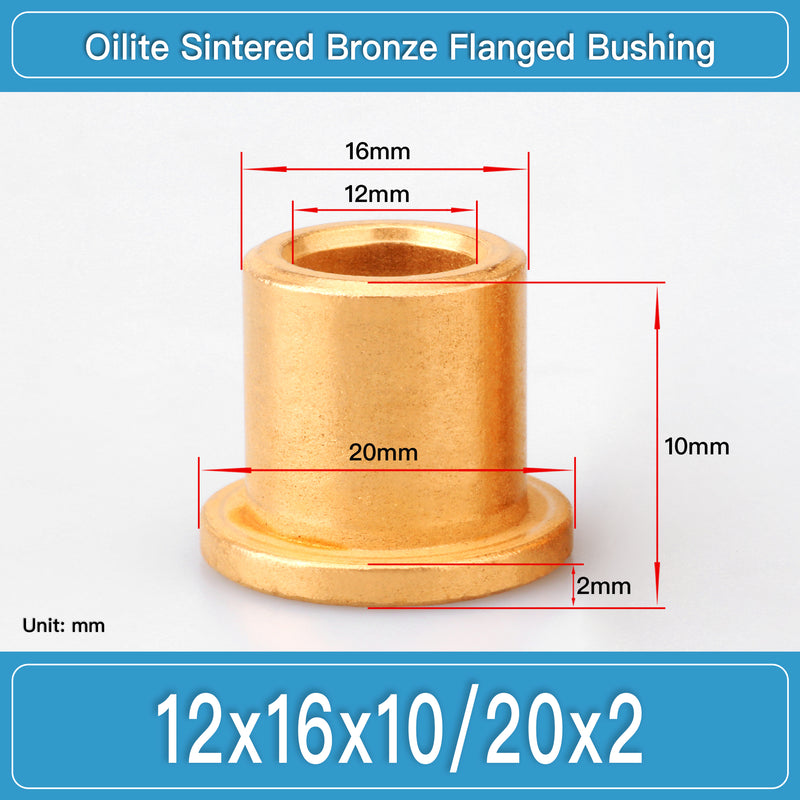

BBF12X16X10-20X2 Oilite Sintered Bronze Flanged Bushings dimension drawing
View full-size image

Flanged Bronze Bushings · Industrial Standard Part

12x16x10/20x2mm Oilite Sintered Bronze Flanged Bushing Self-Lubricating Bearing 2PCS

Model
BBF12X16X10-20X2
Series
BBF Series
Brand
LineAxis

Selected specification

View full specifications
Type code
BBF12X16X10
Bore Diameter
12.0 mm
Outside Diameter
16.0 mm
Width
10.0 mm
Flange Outside Diameter
20.0 mm
Flange Thickness
2.0 mm
Material
Oilite Sintered Bronze

12 x 16 x 10 mm Oilite Sintered Bronze Flanged Bushing This flanged self-lubricating sleeve bearing is suitable for repair, replacement, light machinery, hobby equipment, electric tools, and general industrial applications requiring low-maintenance rotating support. The sintered bronze structure is oil-impregnated ...

Model-specific dimensions White-background product image Bulk purchasing support

Product details

Product overview

12x16x10/20x2mm Oilite Sintered Bronze Flanged Bushing Self-Lubricating Bearing 2PCS

This flanged bronze bushing is listed as one independent model so bore, body, flange dimensions and repeat purchasing remain unambiguous.

  • Model: BBF12X16X10-20X2
  • Material: Oilite Sintered Bronze
  • Delivery time: 7 business days
  • Shipping origin: China
BBF12X16X10-20X2 Oilite Sintered Bronze Flanged Bushings dimension drawing

Selected model

Specifications

Model BBF12X16X10-20X2 Series BBF Series
Bore Diameter 12.0 mm Outside Diameter 16.0 mm
Width 10.0 mm Material Oilite Sintered Bronze
Flange Outside Diameter 20.0 mm Flange Thickness 2.0 mm
Package 1 pcs MOQ 1 pcs
Delivery time 7 business days Ship from China

Technical reference

Dimension drawing

L 10.0 mm d 12.0 mm D 16.0 mm BBF12X16X10-20X2

Drawing dimensions

d
12.0 mm
D
16.0 mm
L
10.0 mm

Order assurance

Quality, packing & delivery

Specification review

Model, dimensions, quantity and drawing requirements are checked before bulk order confirmation.

Industrial packing

Products are packed for export transport with model identification retained for repeat purchasing.

Delivery support

Default delivery time is 7 business days. DDP options are available by quote.
